DRYING AND STORAGE CABINETS
The endoscope cabinet managed by a PLC through a touch screen display. Designed to store up to 18 flexible endoscopes and TEE probes aseptically in Vertical and Horizontal
Compliance with standards EN 16442:2015, Class I. Independent monitored flow rate of the endoscopes channels. Controlled HEPA filtered air environment through antibacterial filter 0,2 micron H14 to dry instruments externally; instead, endoscopes’ channels are being filtered through filter 0,003 micron ; check of relative humidity, decontamination plasma system and double check of operating temperature.
The traceability software (optional) provides access to the most important hospital computer systems through Ethernet connection.
Provided with barcode reader, 50 instrument barcode labels + 20 for operators, an integrated printer, and a medical-grade air connection.
The storage cabinets are available with both Vertical and Horizontal Storage.

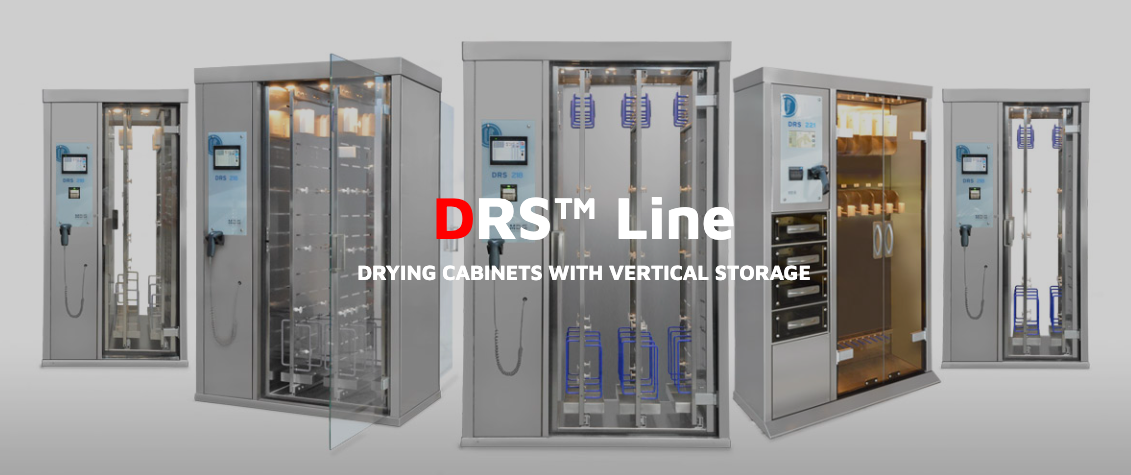

DRS™ Line - DRYING CABINETS WITH VERTICAL STORAGE More Information
DRS-218™ LINE
- To dry and store endoscopes is the complete and versatile solution for the proper aseptic conservation of instruments up to 800 hours. By the innovative patented cold plasma system that defeats potential viral and bacterial contaminations which occur during load and unload of instruments.
DRS-218™ LINE – AIR-HEATED VERSION (TV)
- To dry and store endoscopes is the basic solution for the proper aseptic conservation of instruments up to 72 hours,
DRS-221™ LINE - Vertical drying cabinet dedicated to ENT department
- Drying and storage system for flexible videobronchoscopes/cystoscopes and similar, flexible fibrobronchoscopes/cystoscopes and similar
-----------------------------------------------------------------------------------------

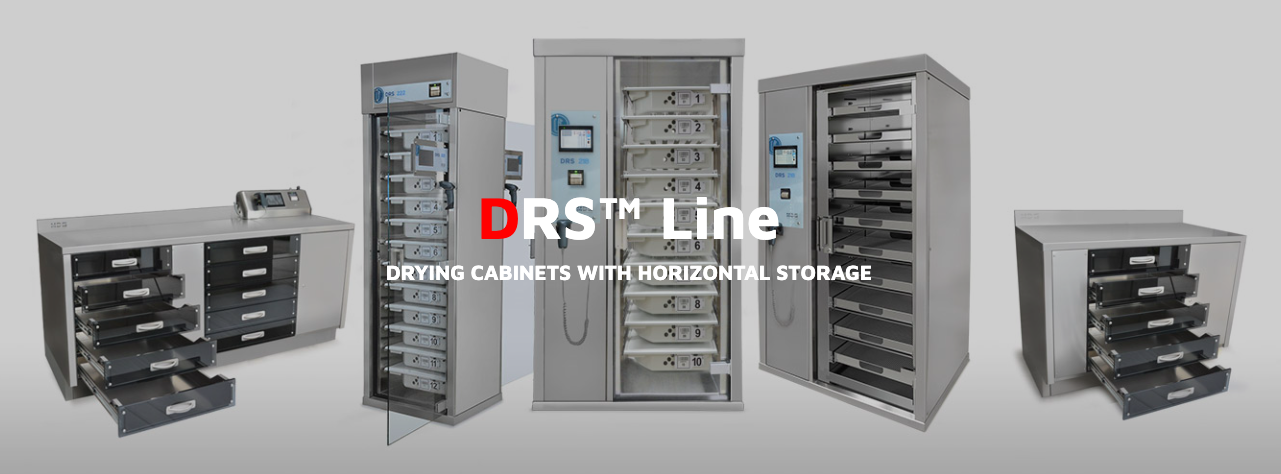

DRS™ Line - DRYING CABINETS WITH HORIZONTAL STORAGE More Information
HORIZONTAL DRYING AND STORAGE CABINETS FOR ENDOSCOPES
Our cabinet range for endoscopy boasts several lines of horizontal storage devices, including the line DRS-215, DRS-218/S/VP and DRS-222. Each series allows the aseptic storage, up to 800 hours, up to 12 flexible endoscopes of any brand and model.
As class I medical devices, our cabinets are created and designed to grant complete conformity to EN 16442:2015, maintaining, in each condition, the correct pressure of sterile air, avoiding the risk of environmental contamination. This is also thanks to the innovative patented cold plasma system that defeats potential viral and bacterial contaminations which occur during load and unload of instruments.
The independent storage positions allow a versatile use of the system as well as reducing cross-infection risks. The system performs a fast drying through heated air (maximum 32°C), granting high-level performances, this is also thanks to HEPA filter 0,2 micron and a filter for viral retention 0,003 micron of the drying line of endoscopes channels.
The range is available in two configurations, the first complete with a traceability system managed by PLC and a second without monitoring but just equipped with the only Air-Heated system. (models TV).
Our cabinet can store from 5 up to 12 endoscopes and are available in single door or pass-through version (excluding line DRS-215 equipped with drawers and not doors – patent).
