DRS-218 LINE (No. of Endoscope; 6/9/10/15/18)

DRS-218 LINE       More Information

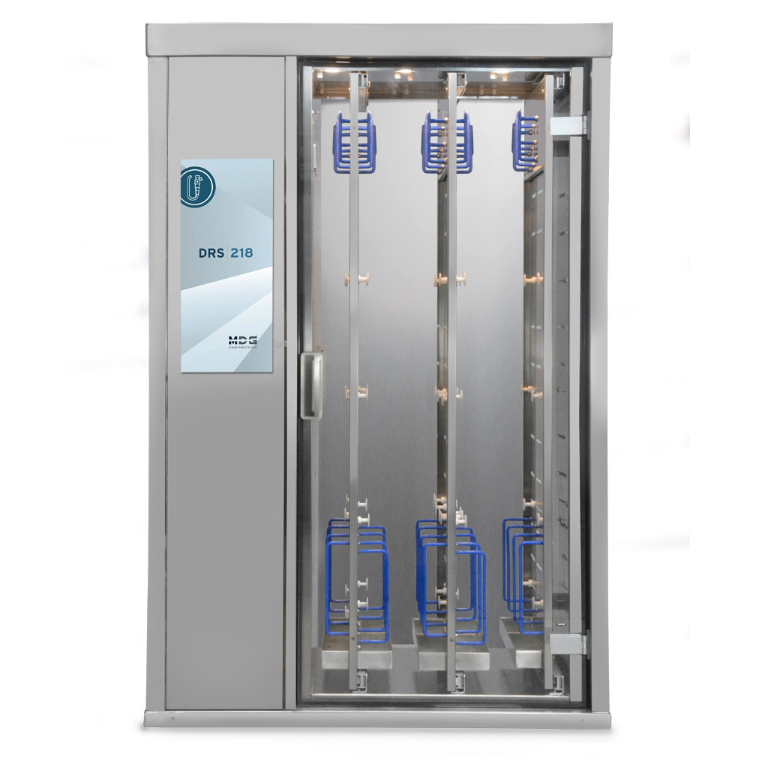

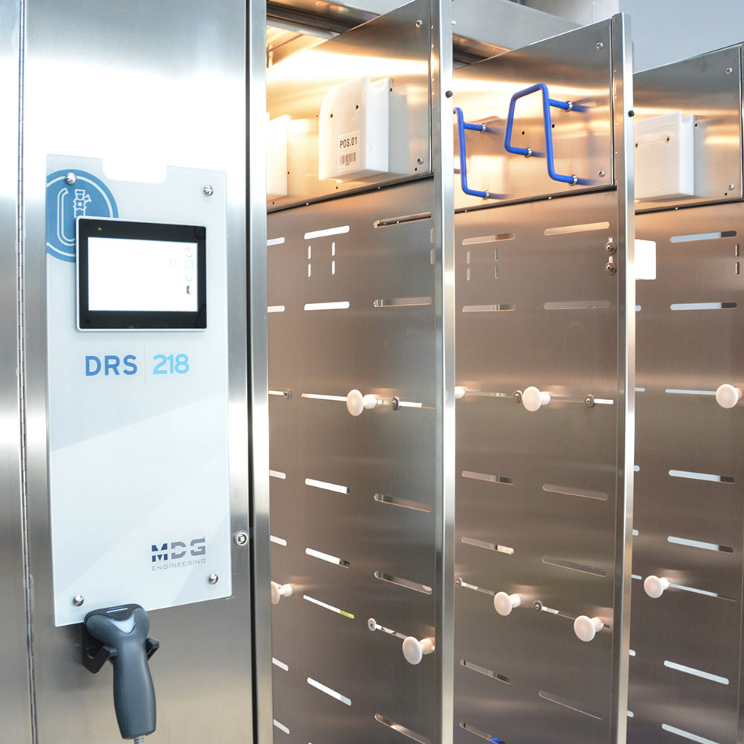

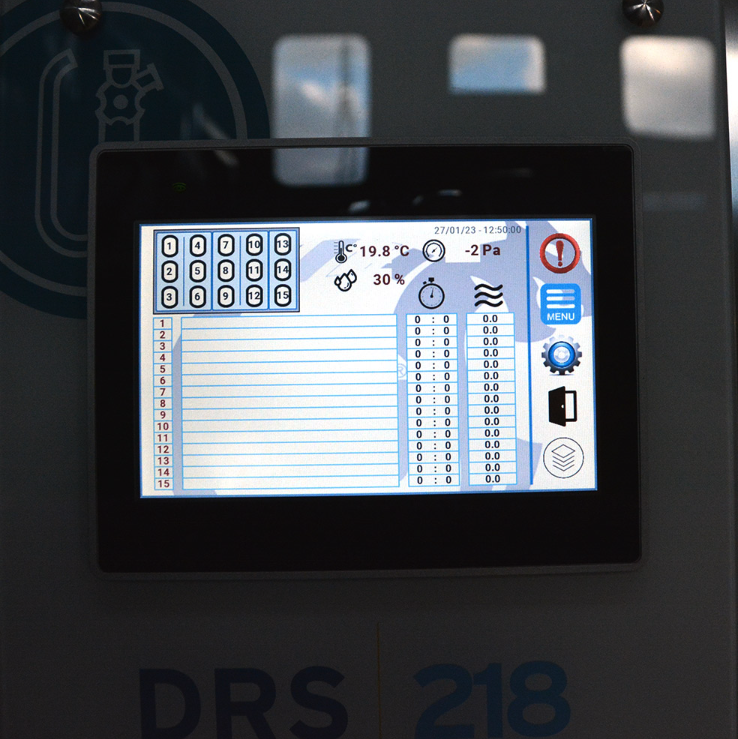

The DRS-218 is an endoscope cabinet managed by a PLC through a 7” 16:9 HD touch screen display. Designed to store up to 10 flexible endoscopes and TEE probes aseptically and vertical up to 800 hours.

Compliance with standards EN 16442:2015, Class I. Independent monitored flow rate of the endoscopes channels. Controlled HEPA filtered air environment through antibacterial filter 0,2 micron H14 to dry instruments externally; instead endoscopes’ channels are being filtered from filter 0,003 micron
;  check of relative humidity, decontamination plasma system and double check of operating temperature.

The traceability software (optional) provides access to the most important hospital computer systems through Ethernet connection.

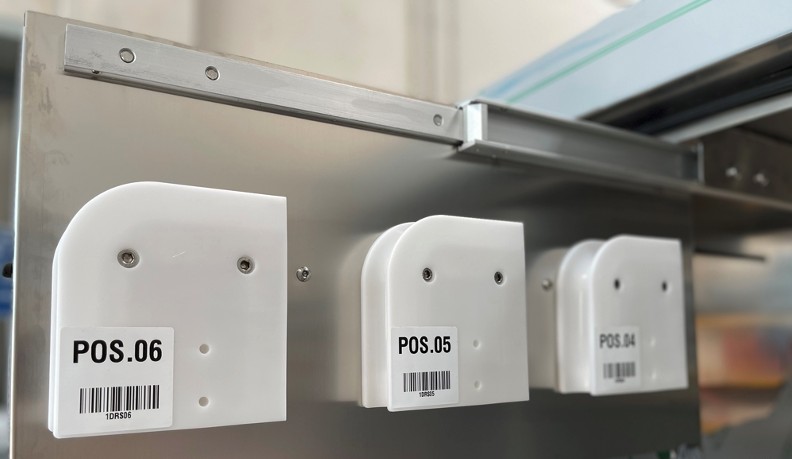

Provided with barcode reader, 50 instruments barcode labels + 20 for operators, integrated printer, medical grade-air connection.

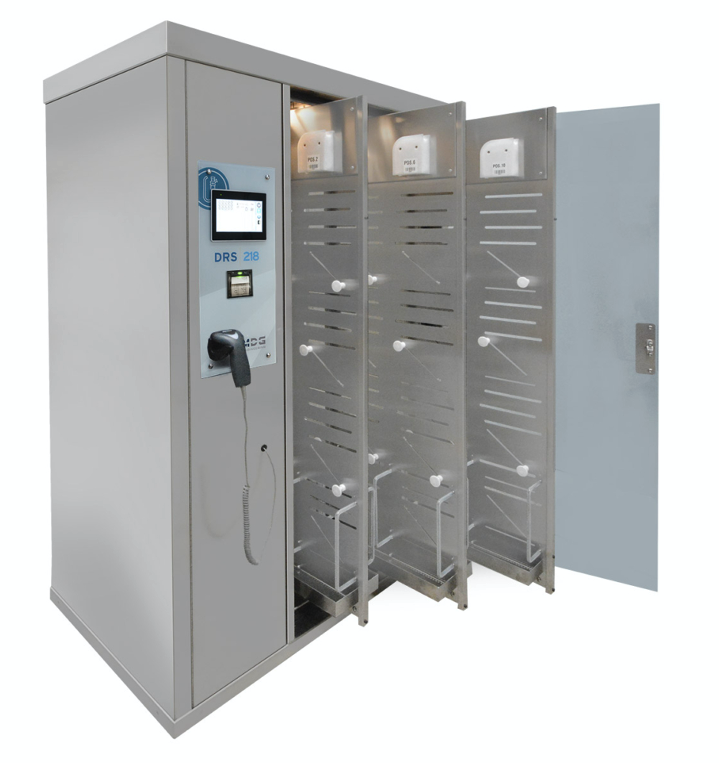

Available pass-through version (two doors) or single door.

The cabinet can be transformed from single door in pass-through in a second moment  - unique characteristic VS competitors

DRS-218™ LINE – AIR-HEATED VERSION (TV)
Systems for the aseptic storage of semi-rigid, flexible endoscopes and TEE probes

Our cabinet range DRS-218/TV to dry and store endoscopes is the basic solution for the proper aseptic conservation of instruments up to 72 hours, up to a maximum of 15 endoscopes of any brand and model. As class I medical devices, our cabinets are created and designed to be compliant to EN 16442:2015, and maintain in each condition the correct pressure of sterile air which is filtered through HEPA filter 0,2 micron (external endoscopes drying) and through a filter for viral retention 0,003 micron (internal drying of endoscopes channels).

This is also thanks to the innovative patented cold plasma system that defeats potential viral and bacterial contaminations which occur during load and unload of instruments. The independent storage positions allow a versatile use of the system as well as reducing cross infection risks. The system performs a fast drying through heated air (maximum 32°C) granting high-level performances, this is also thanks to Our cabinet can store from 6 up to 15 endoscopes and are available in single door or pass-through version (All our single-door cabinets can be converted in to pass-through one thanks to a special modification kit).

Technical features of DRS-218™ line with traceability system:

– Air-heated cabinet with air up to 32°C;
– Storage capacity from 6 up to 15 endoscopes;
– Predisposition to hospital medical-grade air supply, otherwise a it can be used with internal compressor (optional);
– Patented plasma decontamination system to defeat virus and bacteria (works also on cabinet cavities);
– Easy and quick connection through socket, no other connections required;
– Glass door opening left or right;
– Led lights (optional);
– Extremely silent.
